Acrylic Yarn Dyeing With Cationic Dyes: Practical Process Notes

Acrylic yarn dyeing is most commonly done with cationic dyes. The reason is simple: acrylic fiber contains acidic groups that can bond with the positive charge of cationic dyes. This gives acrylic bright shades, strong dye uptake, and good color depth. In real dyeing, though, the result depends heavily on pH, heating speed, fiber type, dye compatibility, leveling control, package density, and washing after dyeing.

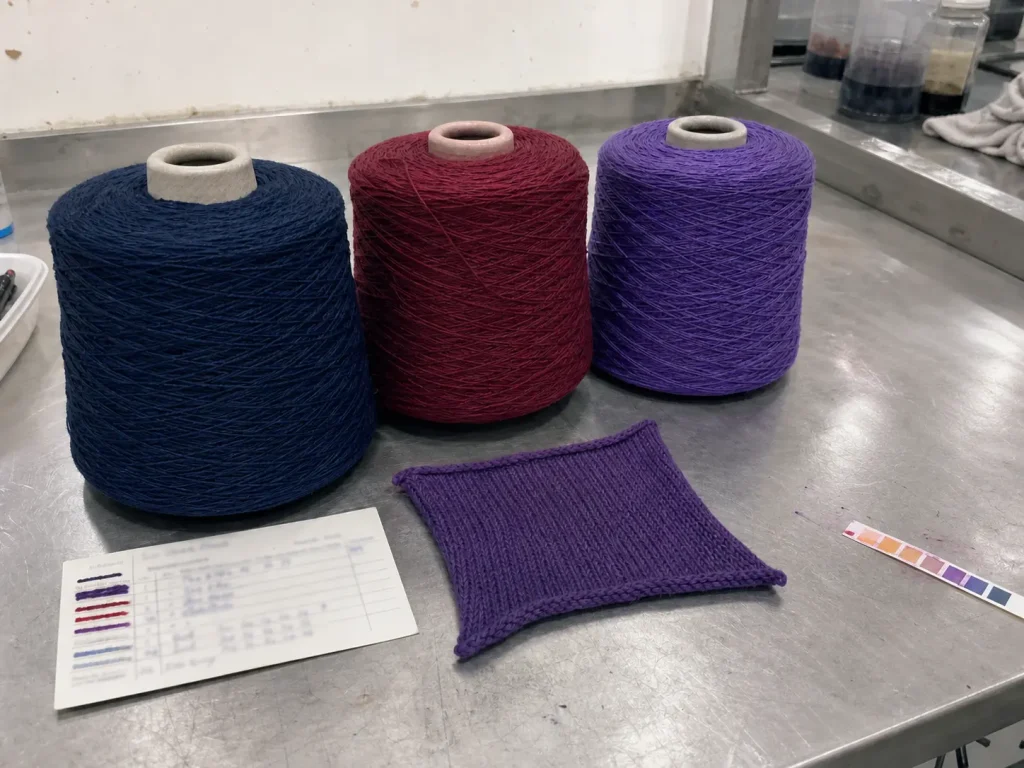

Our factory treats acrylic dyeing as a process-control job, not only a color-matching job. A lab dip may look clean on a small yarn sample, but a trial cone can still show shade difference after knitting. We often check dyed acrylic or acrylic-wool yarn on an 18G sock machine because knitted fabric shows barre, uneven dyeing, and tension marks more clearly than the cone surface. That small step saves trouble before bulk dyeing.

Why Acrylic Fiber Matches Cationic Dyes

Acrylic fiber, also called polyacrylonitrile fiber, usually contains more than 85% acrylonitrile. During polymer production, a small amount of comonomer is added to improve dyeability. These comonomers may contain sulfonic acid groups or carboxyl groups. Under acidic dyeing conditions, these groups provide negative sites inside the fiber. Cationic dyes carry positive charge, so they can form ionic bonds with the acrylic fiber.

This ionic bonding is the main reason cationic dyes work so well on acrylic yarn. The shade is often bright, especially in red, blue, violet, navy, and winter fashion colors. Dye uptake can also be high. For socks, thermal knitwear, blankets, upholstery yarn, and acrylic-wool blended yarns, this is one practical advantage of acrylic.

Still, not every acrylic fiber dyes in the same way. Acrylic fiber with sulfonic acid groups usually dyes faster. It can reach shade quickly, but leveling is more difficult. Acrylic fiber with carboxyl groups often dyes more slowly, so it may give better leveling, but it needs enough time for full dye diffusion. When the acrylic source changes, the old dyeing curve may not work exactly the same. From our factory view, this is one reason a fresh lab dip is necessary even when the color number looks familiar.

Acrylic Yarn Dyeing pH: Keep the Bath Stable

For acrylic yarn dyeing with cationic dyes, the usual pH range is around 4.0 to 5.0. A weak acidic bath helps the acidic groups in acrylic fiber ionize properly and supports the bond between fiber and dye. In production, an acetic acid and sodium acetate buffer system is often used to keep the pH stable.

If the pH moves too high, especially above 6.0, cationic dyes may lose performance. The dyeing rate can drop, the shade may become weaker, and the final color may not match the approved lab dip. In some cases, the dyer may try to correct the shade by adding more dye, but that can increase cost and still leave leveling problems.

If the pH is too low, especially below 3.0, acrylic fiber may suffer damage under high temperature. The yarn can lose strength or feel harsher after dyeing. For normal acrylic yarn dyeing, we prefer to keep the pH not lower than 4.0 unless a special fiber or dye system requires a different route.

In bulk dyeing, pH control looks like a small detail until one shade fails. Then it becomes a delivery problem, not only a lab problem. A failed bulk shade means rework, extra testing, delayed shipment, and sometimes claims from the knitting mill or final buyer. The real cost is not only the dyed yarn price.

Temperature Control Around the Glass Transition Point

Temperature is the most sensitive part of acrylic dyeing. Acrylic fiber has a glass transition temperature, usually around 75-85°C. Below this range, dye mostly stays near the fiber surface. Once the temperature passes this range, the fiber structure opens more, and dye can diffuse into the fiber.

If the bath heats too fast near 75-85°C, the dye may strike too quickly. This often causes color flowers, streaks, or uneven shade. The problem becomes more obvious in knitted fabric, especially in socks, rib fabric, and close-fitting knitwear where the surface is stretched during use.

A practical dyeing curve usually starts at 40-50°C. The yarn enters the bath at this lower temperature and stays for about 10 minutes. This allows slow initial adsorption and reduces the risk of fast strike. After that, the bath rises slowly toward 80-85°C. Around the glass transition zone, the heating rate should normally stay at or below 1°C per minute.

After the fiber begins to open, the bath can continue to 95-100°C and hold for 40-60 minutes. Light shades usually need less holding time. Medium and dark shades need more time so the dye can diffuse properly into the fiber. For some medium grey and deep shades, a higher-temperature process such as 120°C for about 20 minutes may be used, but this depends on fiber grade, yarn blend, machine type, and customer requirement. We do not treat 120°C as a default setting. Before bulk use, our sample room checks hand feel, shade stability, yarn strength, and washing result.

Liquor Ratio and Package Preparation

Acrylic yarn dyeing often uses a liquor ratio from 1:10 to 1:20. A smaller liquor ratio, such as 1:10, can suit deep colors because the dye concentration is higher. A larger liquor ratio, such as 1:20, may help leveling, especially for light and medium shades.

The liquor ratio alone cannot solve all dyeing problems. Package winding quality also matters. If the cone is too tight, the dye liquor may not pass evenly through the yarn package. If the cone is too soft, the package can deform during dyeing. Either case may create inner-outer shade difference.

For bulk work, we check cone density before dyeing. Actually, many dyeing problems start before the dye bath. Poor package preparation can make a good formula look unstable. This is especially important for acrylic yarn that will be used in socks or circular knitting, because uneven dyeing and unstable unwinding can both show on the machine.

Leveling Agents and Retarders

Cationic dyes have strong affinity to acrylic fiber. This gives good color yield, but it also creates the risk of fast and uneven dyeing. A cationic leveling agent can slow the dye strike by competing with the dye for acidic sites on the fiber. It is especially useful for acrylic fiber that contains sulfonic acid groups and dyes very quickly.

Nonionic leveling agents can also help dispersion and bath stability. However, compatibility must be tested before bulk dyeing. Some auxiliaries may interfere with cationic dye behavior or cause precipitation. In our sample work, we test the full dyeing system, not only the dye. The lab dip should use the same auxiliary logic planned for production.

For difficult dark shades, a retarder may help. Under acidic conditions, the retarder can reduce the active dyeing speed and release dye more slowly. This gives the dye more time to level before full fixation. The dosage should be careful. Too little retarder may not help. Too much can lower dye uptake or make the shade difficult to reach.

Some dye baths also need anti-precipitation support. Cationic dyes may aggregate under certain acidic conditions. A small amount of suitable dispersing support can reduce sediment and shade spots. In some acrylic dyeing work, sodium sulfate may help reduce material brittleness or handling damage, but it should be tested by recipe and fiber type. For acrylic-wool blends, a wool leveling agent or two-in-one auxiliary may help dispersion and reduce dye aggregation, but the wool side and acrylic side must both be considered.

Common Acrylic Dyeing Problems We See in Production

Color Flowers or Streaks

Color flowers usually come from fast heating, weak leveling, high dye concentration, poor circulation, or uneven package density. The most important control point is the heating rate around 75-85°C. We keep this part slow because the dye strike changes quickly near the glass transition temperature.

For strong shades, we also prefer staged dye addition when needed. This reduces the risk of sudden dye strike. If the first trial shows unevenness, we adjust the leveling agent, retarder, heating curve, or cone density before approving bulk dyeing.

Poor Wash Fastness or Rubbing Fastness

Poor fastness can come from insufficient holding time or floating dye left on the yarn surface. After dyeing, acrylic yarn usually needs washing at around 60°C with neutral soap. For medium and dark shades, washing twice may be necessary to remove loose color.

Buyers should check the test method, not only the result wording. For wash fastness, ISO 105-C06 is a common reference for color fastness to domestic and commercial laundering. For rubbing or crocking risk, AATCC TM8 is often used in textile testing. The exact method should match the buyer’s market and product type.

Dye Hydrolysis or Weak Shade

If the pH is too high or the high-temperature holding time is too long, cationic dyes may lose activity. The shade can become weak or dull. This is why we keep the buffer system stable and avoid unnecessary over-processing, especially for light colors that need clean brightness.

Fiber Damage

Acrylic fiber can suffer when the bath is too acidic or the temperature is too high for too long. The damage may show as lower strength, rougher hand feel, or poor bulk. For acrylic-wool blended yarn, the wool side can also be affected. The dyeing route should protect both fibers, not only hit the target shade.

Yarn Test and Fabric Test Are Not the Same

Where Acrylic Dyed Yarn Is Commonly Used

Acrylic dyed yarn is widely used because it gives warmth, bulk, bright color, and practical cost. Common applications include winter socks, sweaters, thermal underwear, blankets, home textiles, upholstery yarn, industrial textiles, automotive interior textiles, and close-to-skin knitwear.

Each application has a different risk point. Socks need knitting stability, hand feel, pilling control, and wash fastness. Home textiles need shade consistency, softness, and colorfastness after repeated washing. Automotive interior yarns need stronger light fastness discussion. Industrial textiles may care more about strength and process stability than bright shade. Medical or hygiene-related textiles need careful chemical safety and claim control.

For close-to-skin products, buyers may ask for chemical safety documents. OEKO-TEX STANDARD 100 is widely used in textile sourcing for harmful substance testing. The certificate scope should be checked carefully because fiber, yarn, fabric, and garment stages are not always covered by the same document.

Bulk Consistency and Supplier Communication

Bulk acrylic yarn dyeing needs clear communication before production. We usually ask for yarn count, composition, shade reference, end use, test requirement, sample quantity, and expected bulk quantity. For repeat orders, the approved lab dip and previous bulk sample are more useful than a color code alone.

For custom color work, lab dips should be checked under the buyer’s required light source. Some acrylic shades shift under different light, especially grey, navy, purple, wine, and beige. If the buyer uses D65, TL84, or another light source for approval, the same condition should guide the lab dip decision.

For acrylic yarn dyeing, we also keep the bulk feedback from knitting mills, because shade stability after winding and knitting is often more useful than checking the cone alone.

Cost also needs a full view. A cheaper dyed yarn is not always cheaper if the shade fails, the fastness test fails, or the shipment is delayed. In real production, a stable recipe, controlled heating curve, proper washing, and clear documents can reduce hidden cost. For broader sourcing work, our functional yarn supplier page shows the type of development information we normally confirm before sampling and bulk planning.
